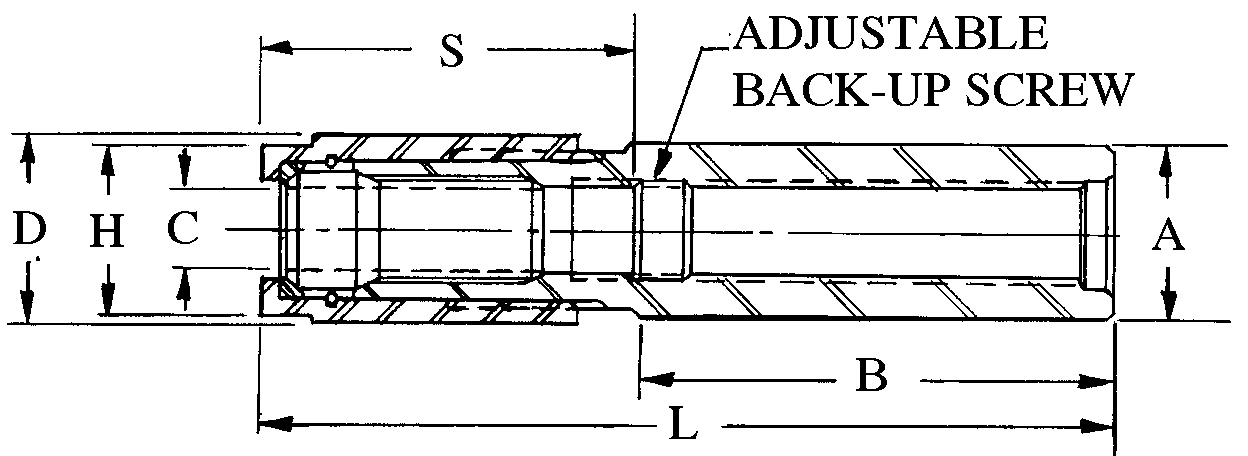

Straight Shank Double Angle Collet Chucks

Close-Center Double Angle Collet Chucks

SMALL OUTSIDE DIAMETER IS IDEAL FOR USE WITH MACHINING CENTERS AND FOR SOLVING CLOSE CENTER DISTANCE AND FIXTURE CLEARANCE PROBLEM.

RECOMMENDED FOR DRILLING

C CAPACITY	COLLET SERIES	A	B	L	D DIAMETER	H HEX	S MIN/MAX	CAT. NO.	LOCKNUT
1/32-1/4	300	1/2	3.0	4.38	.56	1/2	1.5/3.9	SS050DA304438-SOM	LNA304M
1/32-1/4	300	1/2	5.4	6.81	.56	1/2	1.5/4.2	SS050DA304681-SOM	LNA304M
3/64-25/64	200	3/4	3.0	4.69	.84	3/4	1.6/4.7	SS075DA204469-SOM	LNA204M
3/64-25/64	200	3/4	5.5	7.12	.84	3/4	1.6/4.7	SS075DA204712-SOM	LNA204M
3/64-9/16	100	1"	3.0	4.88	1.06	15/16	1.9/4.2	SS100DA104488-SOM	LNA104M
3/64-9/16	100	1"	5.4	7.31	1.06	15/16	1.9/6.6	SS100DA104731-SOM	LNA104M
3/64-3/4	180	1-1/4	5.5	7.38	1.44	1-3/16	1.9/6.6	SS125DA184738-SOM	LNA184M
3/64-3/4	180	1-1/4	8"	9.88	1.44	1.19	1.9/9.0	SS125DA184988-SOM	LNA184M
3/32-1"	400	1-1/2	5.5	7.90	1.88	1.68	2.2/7.0	SS150DA404791-SOM	LNA404M
3/32-1"	400	1-1/2	8"	10.40	1.88	1.68	2.2/9.4	SS150DA404104-SOM	LNA404M
